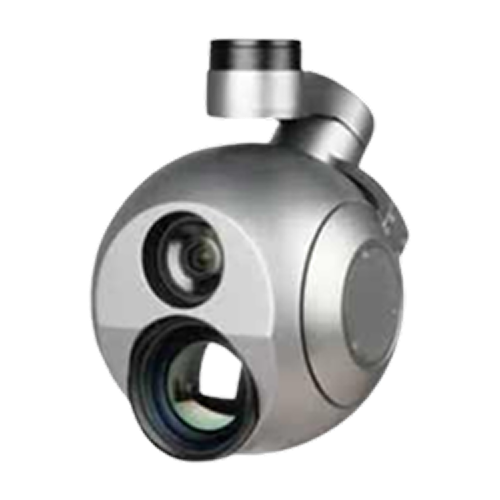

The Tracking Gimbal Camera is designed for high-precision aerial monitoring and real-time target tracking in dynamic operational environments. Equipped with dual EO/IR sensors, 30x optical zoom, and high-definition thermal imaging (1280×1024), it provides dependable support for surveillance, inspection, and mission-critical monitoring.
| Image sensor | 1/2.8" SONY CMOS |
| Lens | 30x optical zoom, f=4.3~129mm |
| Total pixel | 2.13MP |
| IR Thermal imager | 1280*1024, 50mm focus |
| Object tracking | ✔ |
| Working voltage | 4S-6S |
| Output | IP/SDI |
| Control method | PWM/PPM/UART/S.BUS/TCP |
| Local storage | SD card up to 512G |
| N.W. | 1282g |
| Dimension | 120*140.9*212.2mm |

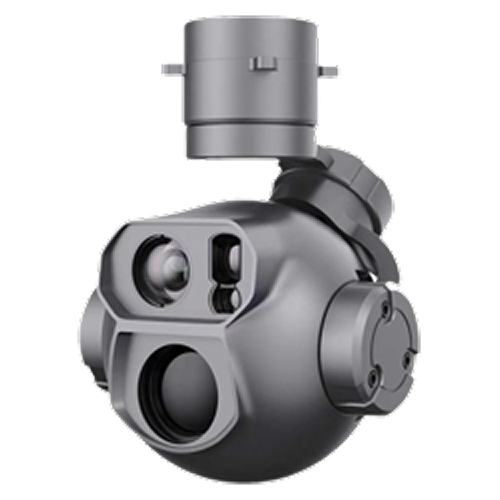

The AI Intelligent Multi-Sensor Spherical Pod is designed to deliver advanced aerial imaging and intelligent target tracking for professional UAV operations. Equipped with a high-resolution CMOS sensor, 30x optical zoom, and AI-powered tracking capability, it delivers dependable performance for surveillance, inspection, and real-time aerial monitoring.
| Image sensor | 1/2.8-inch CMOS, Effective Pixels: 4.09M |
| Lens | 30x optical zoom, f=4.7~141mm |
| Power | 10.7W (Statics, ranging off) / 40.0W (Peak, ranging on) |
| Mounting | Downward/ Upward |
| Object tracking | ✔ |
| Working voltage | 20~53 VDC |
| Control method | Support network, UART and S.BUS control, both private protocol and MAVlink protocol. |
| Local storage | SD card up to 256GB |
| N.W. | 1055g |
| Dimension | 142 x 125 x 187mm |

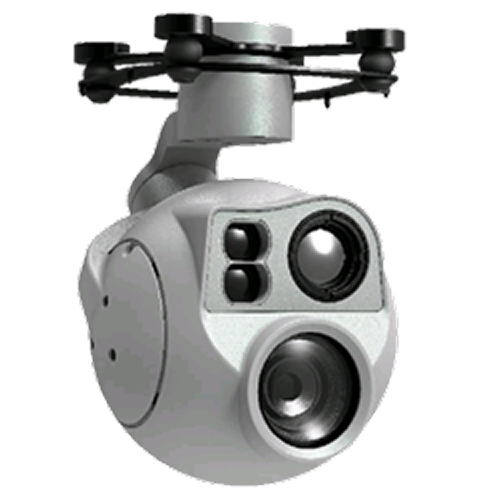

The Tracking Gimbal Camera is designed to deliver stable imaging and intelligent target tracking for professional UAV operations. Equipped with 3-axis stabilization, AI recognition, and image fusion technology, it provides dependable support for surveillance, inspection, and mission-critical aerial monitoring.
| Resolution | 1920 x 1080 |
| Focal Length/Optical Zoom | 5.1mm~51mm/10x |
| FOV | 54 ~ 4.9° |
| Detector | 640 x 512 |
| Spectrum Range | 8μm~12μm |
| Focal Length/Digital Zoom | 19mm/8x |
| Anti-Occlusion and Anti-Interference | Support |
| Power Connector | DC 12-24W/12W (average)/30W |
| Control Interface | RS 422/ Ethernet |
| Operating Temperature | -20°C +50°C |
| Waterproof Grade | IP43 |
