Ground Station & Remote Control Series


Our Ground Station & Remote Control Series delivers reliable command and control systems designed for seamless UAV operations. Equipped with intuitive interfaces, stable communication links, and real-time data transmission, these systems enable precise control, efficient mission management, and enhanced operational awareness.

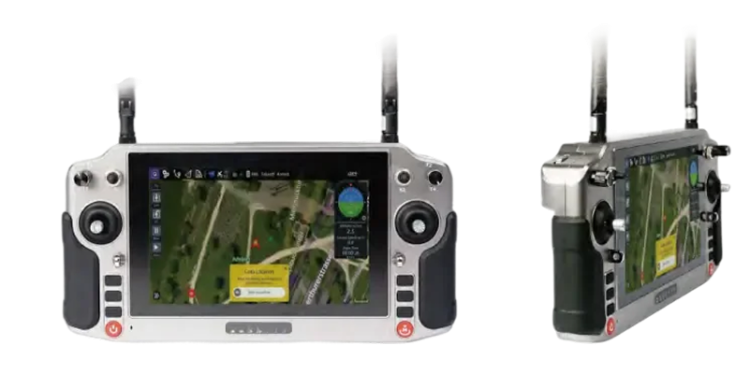

G-07 Handheld Integrated

The G-07 Handheld Integrated Controller is designed for efficient and reliable UAV control in dynamic operational environments. With a lightweight 1.1 kg design and a 7-inch high-resolution display, the G-07 delivers clear visuals and stable performance for precise mission control and provides dependable support for professional aerial operations.

SystemAndroid 9
CPUQualcomm - 8 Necleus
SSD Storage & RAM4G & 64GB
NetworkSupports 4G (2.4G/ 5.8G wifi. Bluetooth 4.0)
Screen7-Inch Touch Screen, 1920*1200 Resolution
External Interface1*USB2.0/1*HDMI/1*TF/1*SIM/1*Type-C
Brightness1500nits
Size275*140*30.5mm
Battery55WH
Working Hours5-6h
Weight1.1kg
Temperature-10°C~60°C
Control Output16 Channels/2*S-BUS Output
Channel Type2* Joystick/2* Wave Wheels/2* Toggle Switches/2* Knobs/9* Buttons
Data Link Frequency5Ghz Frequency Hopping
Transmission Distance10-15km
Transmission Power30 dbm
Air Interface1*S-BUS/1*TTL/1*RJ45/1*XT30

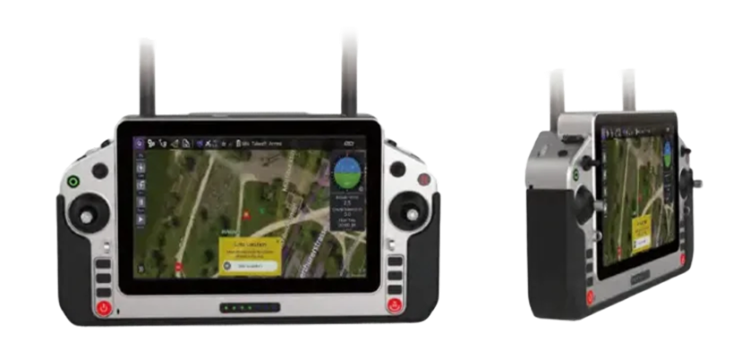

G-08 Handheld Integrated

The G-08 Handheld Integrated Controller is designed for advanced and reliable UAV control in complex operational environments. With a lightweight 1.6 kg design and an 8-inch high-resolution display, it delivers clear visuals and stable performance for precise mission execution and provides dependable support for professional aerial operations.

SystemAndroid 12/Ubuntu22.04
CPURK3588-8 Core
SSD Storage & RAM8G & 64GB
NetworkSupports 4G (2.4G/5.8G wifi, Bluetooth 4.0)
Screen8-Inch Touch Screen, 1920*1200 Resolution
External Interface1*USB2.0/1*HDMI/1*TF/1*SIM/1*Type-C/1*LAN
Brightness1500nits
Size290*160*60mm
Battery77WH
Working Hours4-5h
Weight1.6kg
Temperature-10°C~60°C
Control Output19 Channels/2*S-BUS Output
Channels Type2* Joystick/2* Wave Wheels/4* Toggle Switches/11* Buttons
Data Link Frequency1.4Ghz (Other data chains can be replaced)
Transmission Distance15-30km
Transmission Power30 dbm
Air Interface2*S-BUS/2*TTL/1*RJ45/1*XT30

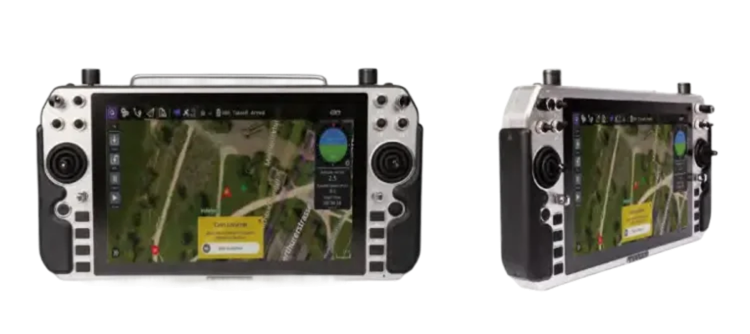

G-10 Handheld Integrated

The G-10 Handheld Integrated Controller is designed for high-performance UAV control in demanding operational environments. With a 10.1-inch high-resolution display and a robust 2.1 kg design, the G-10 delivers clear visuals and stable performance for precise and efficient mission control and provides dependable support for professional aerial operations.

SystemAndroid 12
CPURK3588-8 Core
SSD Storage & RAMSSD Storage & RAM8G & 128GB
NetworkSupports 4G, (2.4G wifi, Bluetooth 4.0)
Screen10.1-Inch Touch Screen, 1920*1200 Resolution
External Interface1*USB2.0/1*HDMI/1*TF/1*SIM/1*LAN
Brightness1000nits
Size335*184*69mm
Battery133WH
Working Hours5-6h
Weight2.1kg
Temperature-10°C~60°C
Control Output22 Channels, 2*S-BUS Output (Customizable protocol)
Channels Type3* Joystick/6* Toggle Switches/2* Knobs/10* Buttons
Data Link Frequency 1.4Ghz (Other data chains can be replaced)
Transmission Distance15-30km
Transmission Power30 dbm
Air Interface2*S-BUS/2*TTL/1*RJ45/1*XT30

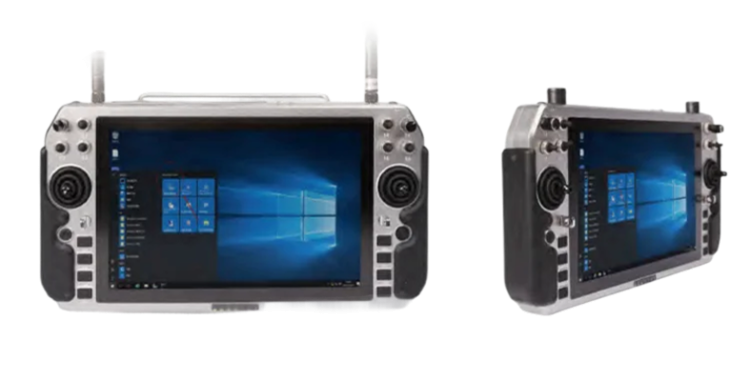

G-10W Handheld Integrated

The G-10W Handheld Integrated Controller is designed for high-performance UAV control in advanced operational environments. Featuring a 10.1-inch high-resolution display and powered by an Intel i7 processor, the G-10W delivers clear visuals and stable performance for precise and efficient mission control and provides dependable support for professional aerial operations.

SystemWindows 10/Linux
CPUIntel i7-10510U
SSD Storage & RAM8G & 256GB
Network2.4G/5.8G wifi, Bluetooth 4.0
Screen8-Inch Touch Screen, 1920*1200 Resolution
External Interface2*USB3.0/1*HDMI/1*LAN/2*SMA-KF
Brightness1000nits
Size335*185*78mm
Battery118WH
Working Hours4-5h
Weight2.3kg
Temperature-10°C~60°C
Control Output22 Channels, 2*S-BUS Output/USB-HID/Customized agreement
Channels Type3* Joystick/6* Toggle Switches/2* Knobs/10* Buttons
Data Link Frequency1.4Ghz (Other data chains can be replaced)
Transmission Distance15-30km
Transmission Power30 dbm
Air Interface2*S-BUS/2*TTL/1*RJ45/1*XT30

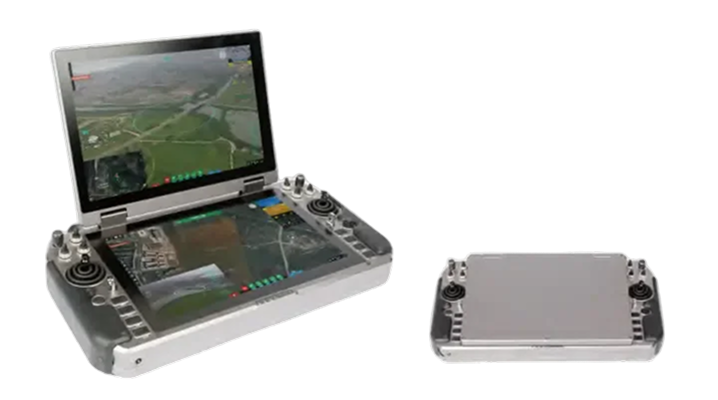

G-10S Handheld Integrated

The G-10S Handheld Integrated Controller is designed for advanced UAV control in demanding operational environments. Featuring dual high-brightness touch screens and a powerful Intel i7 processor, the G-10S delivers enhanced visibility and stable performance for precise and efficient mission control and provides dependable support for professional aerial operations.

SystemWindows 10/Linux
CPUIntel i7-1255U
SSD Storage & RAM8G & 256GB
Network2.4G/5.8G wifi, Bluetooth 4.0
Screen2*10.1-Inch Touch Screen, 1920*1200 Resolution
External Interface2*USB3.0/1*HDMI/1*LAN/2*SMA-KF
Brightness1000nits
Size335*184*69mm
Battery118WH
Working Hours3-4h
Weight2.6kg
Temperature-10°C~60°C
Control Output22 Channels, 2*S-BUS Output/USB-HID/Customized agreement
Channel Type3* Joystick/6* Toggle Switches/2* Knobs/10* Buttons
Data Link Frequency1.4Ghz (Other data chains can be replaced)
Transmission Distance15-30km
Transmission Power30 dbm
Air Interface2*S-BUS/2*TTL/1*RJ45/1*XT30

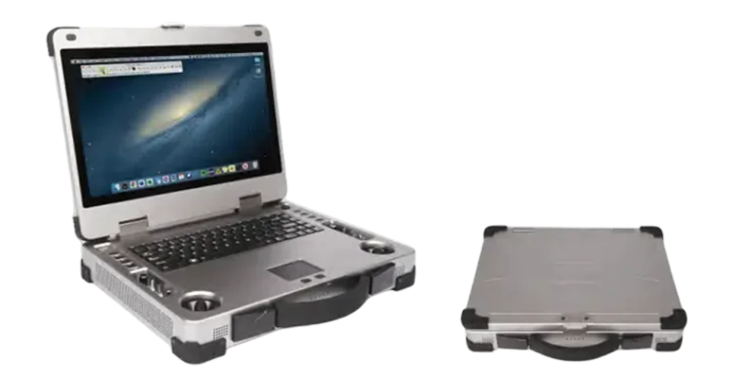

G-15 Single Screen

The G-15 Single Screen Controller is designed for professional UAV control in complex and large-scale operational environments. Featuring a 15.6-inch high-resolution display and a powerful Intel i7 processor, the G-15 delivers clear visuals and stable performance for precise mission control and provides dependable support for advanced aerial operations.

SystemsWindows 10/Linux
CPUIntel i7-11 Processor
SSD Storage & RAM8G & 256GB (Customizable)
Wifi2.4G/5.8G wifi, Bluetooth 4.0
Screen15.6-Inch Screen, 1920*1080 Resolution
Touch Screen10 Spot Touch
External Interface2*USB3.0/1*HDMI/1*LAN/Lin out/Mic in
Brightness1000nits
Size397*330*80mm
Battery133WH
Working Hours4-5h
Weight7kg
Temperature-10°C~60°C
Control Output20 Channels, 2*S-BUS Output/USB-HID/Customized agreement
Channels Type3* Joystick/6* Toggle Switches/2* Knobs/8* Buttons
Reserve Space130*70*27mm
Reserved Interface6*RS232/2*USB/1*RJ45
Reserved Power Supply12V 3A

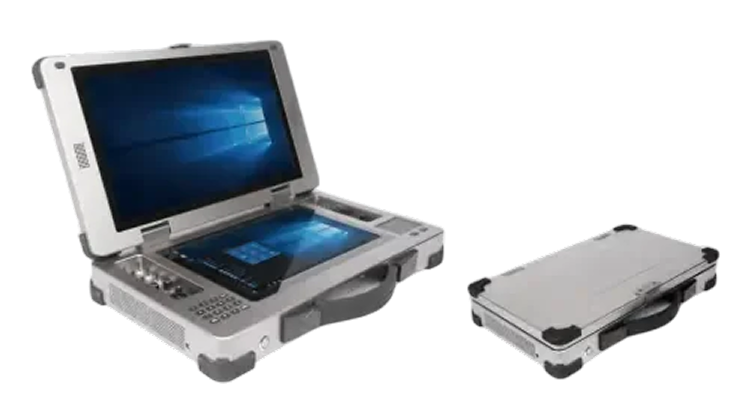

G-21 Dual Screen

The G-21 Dual Screen Controller is designed for advanced UAV control in complex and high-demand operational environments. Featuring a dual-screen configuration with 15.6-inch and 12.1-inch displays, the G-21 delivers enhanced visibility and stable performance for precise and efficient mission control and provides dependable support for professional aerial operations.

SystemWindows 10/Linux
CPUIntel i7-11 Processor
SSD Storage & RAM8G & 256GB (Customizable)
Wifi2.4G/5.6G wifi, Bluetooth 4.0
Screen15.6 Inch (1920*1080) + 12.1 Inch (1208*800)
Touch Screen10 Spot Touch
External Interface2*USB3.0/1*HDMI/1*LAN/Lin out/Mic in
Brightness1000nits
Size462*296*80mm
Battery177WH
Working Hours4-5h
Weight8kg
Temperature-10°C~60°C
Control Output18 Channels, 2*S-BUS Output/USB-HID/Customized agreement
Channels Type2* Joystick/1* Hall Rocker/8* Thrid Gear Levers/2* Knobs/2* Second Gear Levers
Data Link Frequency140*70*27mm
Transmission Distance6*RS232/2*USB/1*RJ45
Air Interface12V 3A

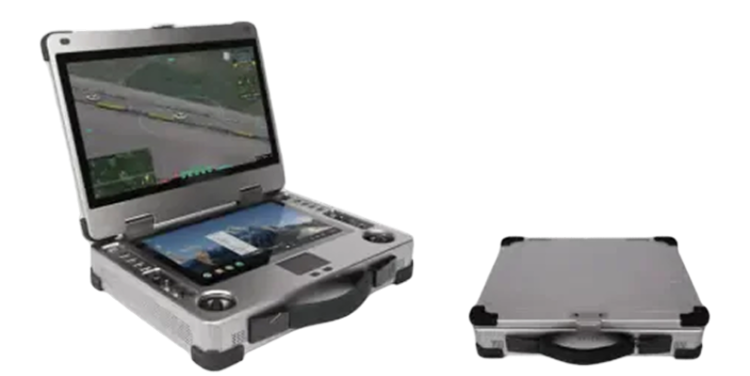

G-22 Dual Screen

The G-22 Dual Screen Controller is designed for advanced UAV control in demanding operational environments. Featuring a dual-screen configuration with 15.6-inch and 12.1-inch displays, the G-22 delivers enhanced visibility and stable performance for precise and efficient mission control and provides dependable support for professional aerial operations.

SystemWindows 10/Linux
CPUIntel i7-11 Processor
SSD Storage & RAM8G & 256GB (Customizable)
Wifi2.4G/5.8G wifi, Bluetooth 4.0
Screen15.6 Inch (1920*1080) + 12.1 Inch (1280*800)
Touch Screen10 Spot Touch
External Interface2*USB3.0/1*HDMI/1*LAN/Lin out/Mic in
Brightness1000nits
Size397*330*80mm
Battery266WH
Working Hours4-5h
Weight8kg
Temperature-10~60°C
Control Output20 Channels, 2*S-BUS Output/USB-HID/Customized agreement
Channels Type3* Joystick/6* Thrid Gear Levers/2* Knobs/8* Buttons
Reserve Space175*60*41mm
Reserved Interface6*RS232/2*USB/1*RJ45
Reserved Power Supply12V 3A

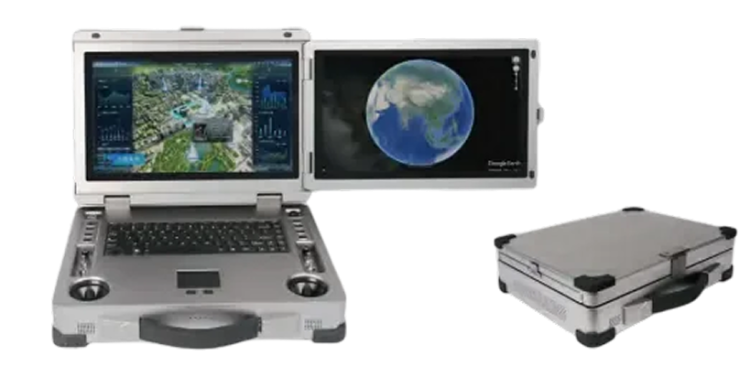

G-25 Dual Screen

The G-25 Dual Screen Controller is designed for high-performance UAV control in advanced operational environments. Featuring dual 15.6-inch high-resolution displays and a durable aluminum alloy structure, the G-25 delivers enhanced visibility and stable performance for precise and efficient mission control and provides dependable support for professional aerial operations.

SystemWindows 10/Linux
CPUIntel i7-11 Processor
Graphics CardIntel Iris Xe
SSD Storage & RAM16 & 512GB
Wifi2.4G/5.6G wifi, Bluetooth 4.0
Screen2*15.6 Inch, 1920*1080 Resolution
Touch Screen10 Spot Touch
External Interface2*USB3.0/1*HDMI/1*LAN/Lin out/Mic in
Brightness1000nits
Size416*330*100mm
Battery266WH
Working Hours4-6h
Weight10kg
Temperature-10°C~60°C
Control Output20 Channels, 2*S-BUS Output/USB-HID/Customized agreement
Channels Type3* Joystick/6* Toggle Switches/2* Knobs/8* Buttons
Data Link Frequency175*80*41mm
Transmission Distance6*RS232/2*USB/1*RJ45
Air Interface12V 3A

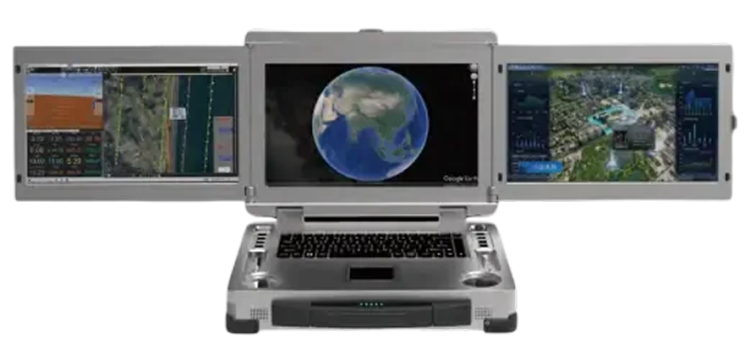

G-30 Three Screen

The G-30 Three Screen Controller is designed for high-performance UAV control in complex and mission-critical environments. Featuring a triple 15.6-inch high-resolution display configuration, the G-30 delivers enhanced visibility and stable performance for precise and efficient multi-screen mission control and provides dependable support for advanced aerial operations.

SystemWindows 10/Linux
CPUIntel i7-11 Processor
SSD Storage & RAM16G & 512GB (Customizable)
Wifi2.4G/5.8G wifi, Bluetooth 4.0
Screen3*15.6 Inch Screen, 1920*1080 Resolution
Power DisplayComputer System Display/LED Battery Level
External Interface2*USB3.0/1*DP/1*LAN/Lin out/Mic in
Brightness1000nits
Size416*330*118mm
Battery266WH
Working Hours3-4h
Weight11kg
Temperature-20~60°C
Control Output20 Channels, 2*S-BUS Output/USB-HID/Customized agreement
Channels Type3* Joystick/6* Toggle Switches/2* Knobs/8* Buttons
Reserve Space175*80*41mm
Reserved Interface6*RS232/2*USB/1*RJ45
Reserved Power Supply12V 3A

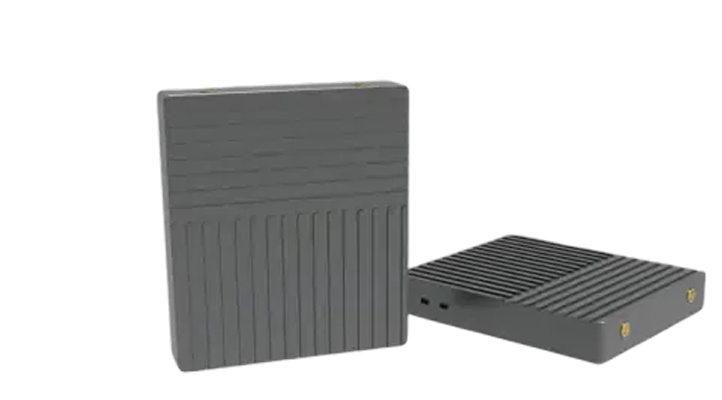

M-10 Data Link

The M-10 Data Link Module is designed to provide stable and low-latency communication for reliable UAV operations. Operating on a 5.8GHz frequency band, the M-10 delivers consistent data transmission and extended communication range for precise and efficient mission control.

Frequency Range5.8Ghz Frequency Band:5.15Ghz~5.85G
Transfer RateAdaptive,≤100Mbps
Maximum Transmission Power30dBm(2T2R)
Communication Distance10-15KM(Intervisibility)
Sensitivity-99dBm
Network TopologyPoint to point/Point-to-Multipoint/Relay/MESH
External Interface2*SMA, 1*SBUS, 1*TTL, 1*RJ45
Antenna GainAir:5dB
Ground:Directional 14 dBi, Omnidirectional 5 dBi
Modulation ModeLR-WIFI
Antenna Standing Wave Ratio≤ 5W
Temperature-40~70°C
Sky End Size72*64*12mm
Weight53g
Power Supply RangeDC9-72V

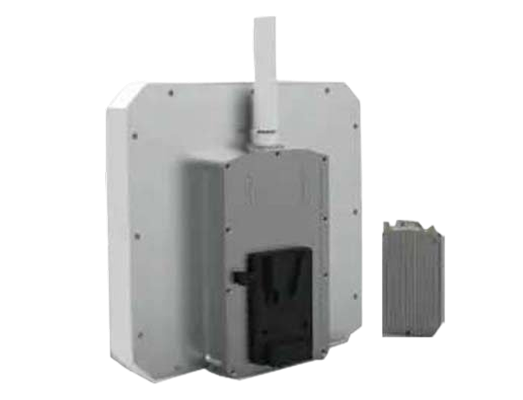

M-30 & M-50 Data Link

The M-30 & M-50 Data Link Modules are designed to deliver stable and long-range communication for advanced UAV operations. Operating on a 1.4GHz frequency band, these modules provide reliable data transmission and extended communication distance for precise and efficient mission control.

Frequency Range1.4Ghz Frequency Band:1300mHz~1500G
Channel Bandwidth1.25MHz/2.5/10MHz/20MHz
Output PowerM30:1W*2/M50:2W*2(2T2R)
Communication Distance10-15km(Intervisibility)
Sensitivity≤ -103dBm@5MHz BW
External InterfaceAir:2*MMCX/1*SBUS/1*TTL/1*RJ45
Ground: 1*N-KF/1*TTL/1*S-BUS/1*RJ45
Antenna TypeAir: Glue Stick Antenna 14cm
Ground: Flat Directional Antenna 25cm x 25cm
Antenna GainAir:2dBi
Ground: Directional 12 dBi, Omnidirectional 6 dBi
Modulation ModeTD-COFDM
Antenna Standing Wave Ratio M30≤ 8.5W    M50≤ 20W
Temperature-40°C~70°C
Sky End Size117*62*19mm
Weight149g
Power Supply RangeDC9-32V
