GROUND STATION AND REMOTE CONTROL SERIES

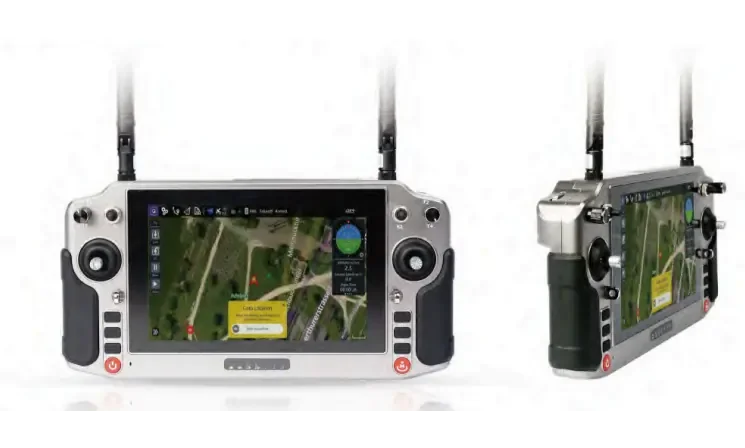

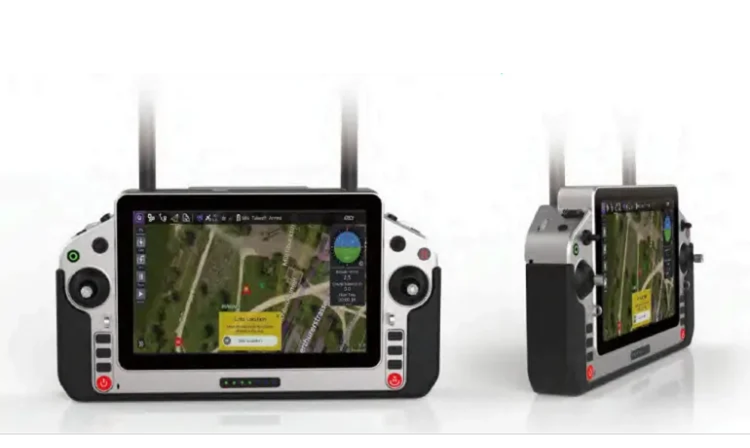

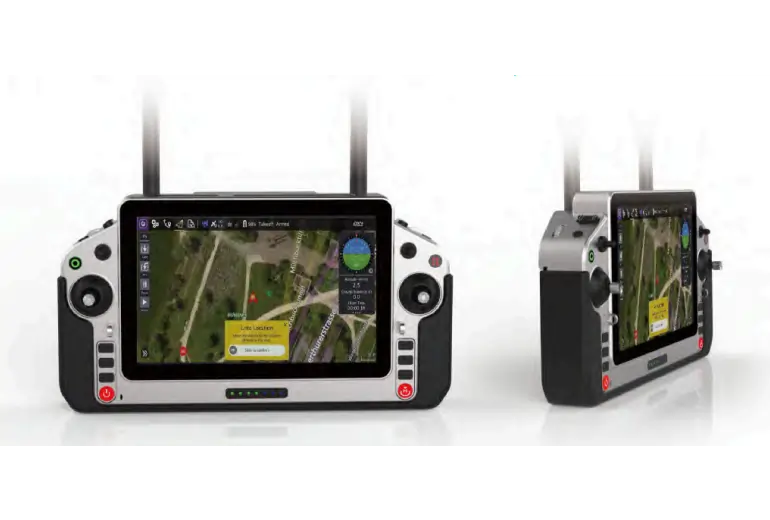

White and black handheld integrated ground station with map background screen with antenna

Ground Station Genggam yang Terintegrasi
Fitur Produk

  • 1,1 Kg Ringan/Mudah dibawa
  • 5Ghz Frequency Hopping
  • Resolusi 7 inci 1920*1200

Detail Produk

SistemAndroid 9
CPUQualcomm - 8 NecleusPenyimpanan SSD & RAM4G & 64GB
JaringanMendukung 4G
(2.4G/5.8G wifi, Bluetooth 4.0)		LayarLayar Sentuh 7 Inci, Resolusi 1920*1200
External interface1*USB2.0/1*HDMI/1*TF/1*SIM/1*Type-C
Brightness1500nitsUkuran275*140*30.5mm
Baterai55WHWaktu operasional5-6jam
Berat1.1kgSuhu operasional-10°C~60°C
Control output 16 Channels/2*S-BUS Output
Tipe saluran2* Joystick/2* Wave Wheels/2* Toggle Switches/2* Knobs/9* Buttons
Frekuensi tautan data 5Ghz Frequency Hopping
Jarak transmisi 10-15kmKekuatan transmisi 30 dbm
Air Interface 1*S-BUS/1*TTL/1*RJ45/1*XT30
White and black handheld integrated ground station with map background screen with antenna

Ground Station Genggam yang Terintegrasi
Fitur Produk

  • 6 TOPS/ Android 12
  • Mendukung penggantian tautan data yang cepat
  •  19-Saluran/S-BUS Output Ganda

Detail Produk

SistemAndroid 12/Ubuntu 22.04
CPURK3588-8 CorePenyimpanan SSD & RAM8G & 64GB
JaringanMendukung 4G
(2.4G/5.8G wifi, Bluetooth 4.0)		LayarLayar Sentuh 8 Inci,
Resolusi 1920*1200
External Interface1*USB2.0/1*HDMI/1*TF/1*SIM/1*Type-C/1*LAN
Brightness1500nitsUkuran290*160*60mm
Baterai77WH Waktu operasional4-5jam
Berat1.6kg Suhu operasional-10°C~60°C
Control Output19 Channels/2*S-BUS Output
Tipe saluran2* Joystick/2* Wave Wheels/4* Toggle Switches/11* Buttons
Frekuensi tautan data1.4Ghz (Rantai data lainnya dapat digantikan)
Jarak transmisi15-30kmKekuatan transmisi30dbm
Air Interface2*S-BUS/2*TTL/1*RJ45/1*XT30

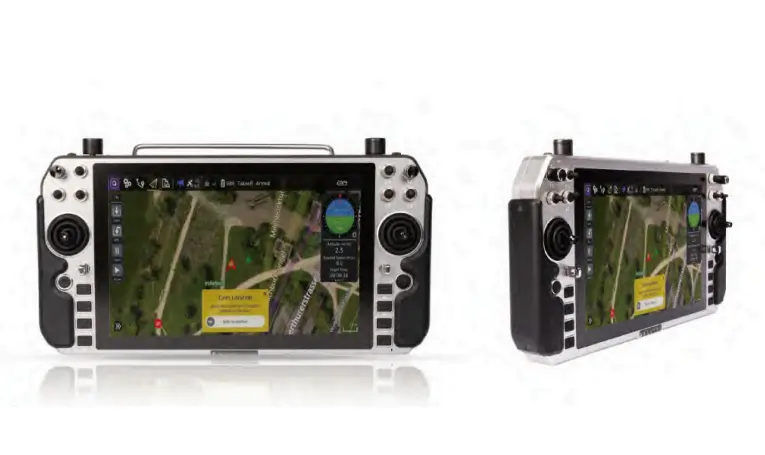

White and black handheld integrated ground station with map background screen

Ground Station Genggam yang Terintegrasi
Fitur Produk

  • 6TOP/Android 12
  • Mendukung tautan data daya tinggi
  • Resolusi 10,1 inci 1920*1200

Detail Produk

SistemAndroid 12
CPURK3588-8 Core Penyimpanan SSD & RAM8G & 128GB
JaringanMendukung 4G
(2.4G wifi, Bluetooth 4.0) 		LayarLayar Sentuh 10,1 Inci, Resolusi 1920*1200
External Interface1*USB2.0/1*HDMI/1*TF/1*SIM/1*LAN
Brightness1000nitsUkuran335*184*69mm
Baterai133WHWaktu operasional5-6jam
Berat2.1kgSuhu operasional-10°C~60°C
Control Output22 Channels, 2*S-BUS Output (Protokol dapat disesuaikan)
Tipe saluran3* Joystick/6* Toggle Switches/2* Knobs/10* Buttons
Frekuensi tautan data1.4Ghz (Rantai data lainnya dapat digantikan)
Jarak transmisi15-30kmKekuatan transmisi30 dbm
Air Interface2*S-BUS/2*TTL/1*RJ45/1*XT30

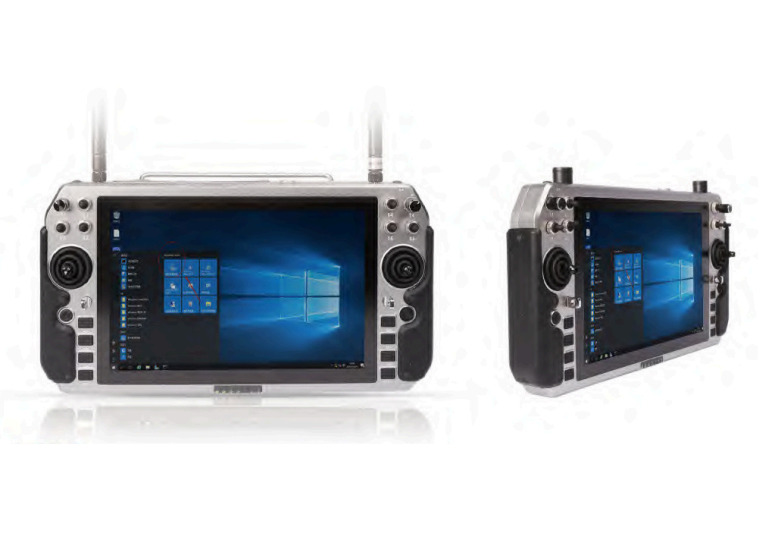

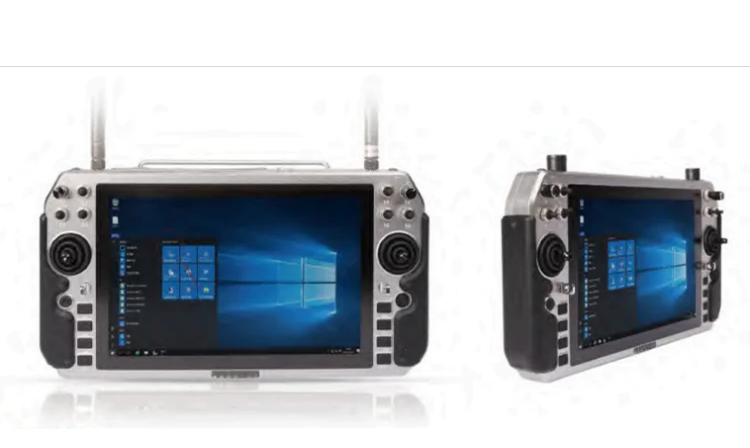

White and black handheld integrated ground station with dark blue background screen

Ground Station Genggam yang Terintegrasi
Fitur Produk

  • Tautan Data Berbeda Opsional
  • Resolusi 1920*1200 10,1 Inci
  • Prosesor Intel i7-10510U

Detail Produk

SistemWindows 10/Linux
CPUIntel i7-10510UPenyimpanan SSD & RAM8G & 256GB
Jaringan2.4G/5.8G wifi, Bluetooth 4.0LayarLayar Sentuh 8 Inci,
Resolusi 1920*1200
External Interface2*USB3.0/1*HDMI/1*LAN/2*SMA-KF
Brightness1000nitsUkuran335*185*78mm
Baterai118WHWaktu operasional4-5jam
Berat2.3kg Suhu operasional-10°C~60°C
Control Output22 Channels, 2*S-BUS Output/USB-HID/Customized agreement
Tipe saluran3* Joystick/6* Toggle Switches/2* Knobs/10* Buttons
Frekuensi tautan data1.4Ghz (Rantai data lainnya dapat digantikan)
Jarak transmisi15-30km Kekuatan transmisi30 dbm
Air Interface2*S-BUS/2*TTL/1*RJ45/1*XT30

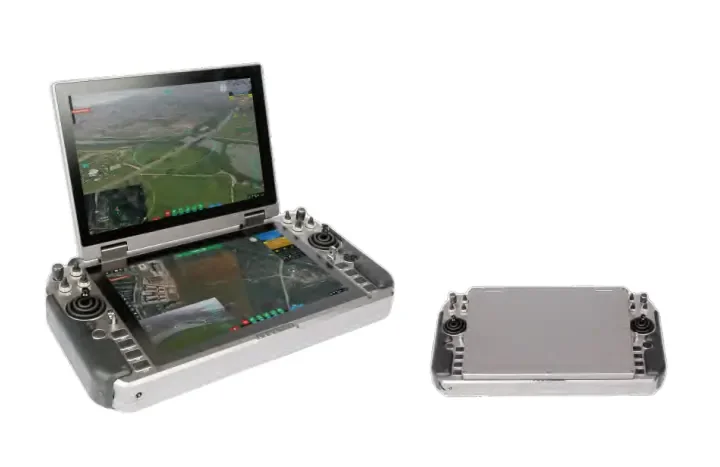

Gray handheld integrated ground stations shows car and screen birdview on the screen

Ground Station Genggam yang Terintegrasi
Fitur Produk

  • Layar Ganda Kecerahan Tinggi + Layar Sentuh Ganda
  • Tautan Data Berbeda Opsional
  • Lokalisasi yang Dapat Disesuaikan


Detail Produk

SistemWindows 10/Linux
CPUIntel i7-1255UPenyimpanan SSD & RAM8G & 256GB
Jaringan2.4G/5.8G wifi, Bluetooth 4.0LayarLayar Sentuh 2*10,1 Inci,
Resolusi 1920*1200
External Interface2*USB3.0/1*HDMI/1*LAN/2*SMA-KF
Brightness1000nits Ukuran335*184*69mm
Baterai118WH Waktu operasional3-4jam
Berat2.6kgSuhu operasional-10°C~60°C
Control output22 Channels, 2*S-BUS Output/USB-HID/Customized agreement
Tipe saluran3* Joystick/6* Toggle Switches/2* Knobs/10* Buttons
Frekuensi tautan data1.4Ghz (Rantai data lainnya dapat digantikan)
Jarak transmisi15-30kmKekuatan transmisi30 dbm
Air Interface2*S-BUS/2*TTL/1*RJ45/1*XT30

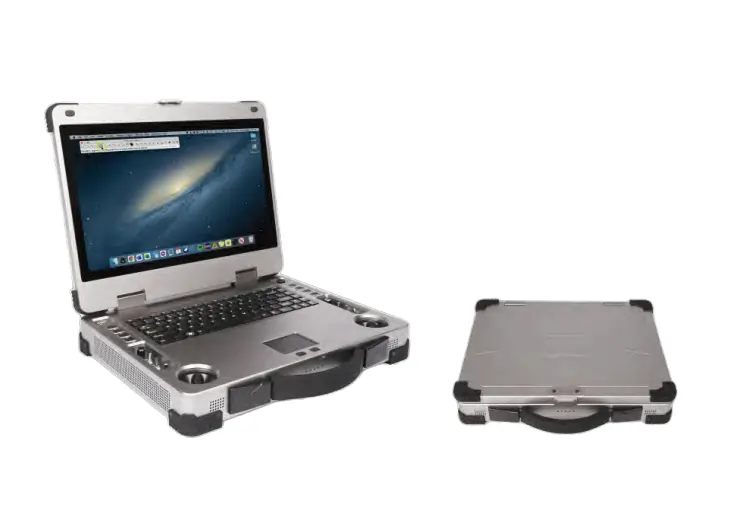

Grey single screen ground station shows space universe in the screen

Ground Station Layar Tunggal
Fitur Produk

  • Tautan Data Berbeda Opsional
  • Layar Terlihat 1000 nits di Bawah Sinar Matahari
  • Dukungan OEM/ODM

Detail Produk

SistemWindows 10/Linux
CPUIntel i7-11 ProcessorPenyimpanan SSD & RAM8G & 256GB (Dapat disesuaikan)
Wifi2.4G/5.8G wifi, Bluetooth 4.0LayarLayar 15,6 inci,
Resolusi 1920*1080
Layar sentuh10 Spot TouchExternal Interface 2*USB3.0/1*HDMI/1*LAN/Lin out/Mic in
Brightness1000nitsUkuran397*330*80mm
Baterai133WHWaktu operasional4-5jam
Berat7kgSuhu operasional-10°C~60°C
Control Output20 Channels, 2*S-BUS Output/USB-HID/Customized agreement
Tipe saluran3* Joystick/6* Toggle Switches/2* Knobs/8* Buttons
Cadangan Ruang130*70*27mm
Reserved Interface6*RS232/2*USB/1*RJ45
Suku daya cadang12V 3A

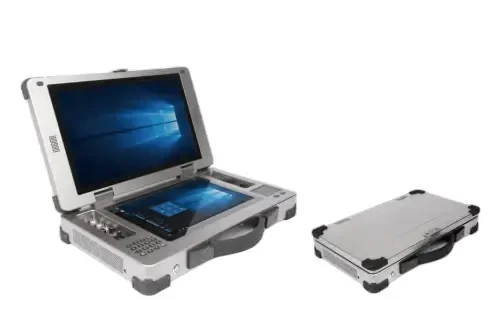

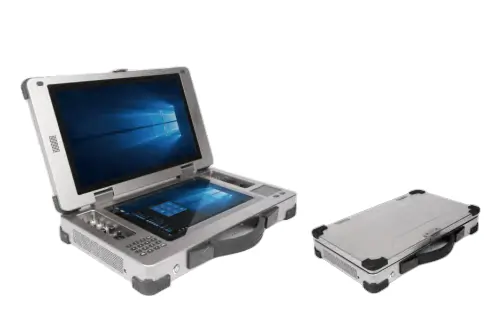

Light grey dual screen ground station with dark blue background screen

Ground Station Layar Ganda

Fitur Produk

  • Dukungan OEM/ODM
  • Layar Terlihat 100 nits di Bawah Sinar Matahari
  • Layar Ganda 15,6 Inci + 12,1 Inci

Detail Produk

SistemWindows 10/Linux
CPUIntel i7-11 Processor Penyimpanan SSD & RAM8G & 256GB (Dapat disesuaikan)
Wifi2.4G/5.6G wifi, Bluetooth 4.0Layar15.6 Inch (1920*1080) +
12.1 Inch (1208*800)
Layar sentuh10 Spot Touch External Interface 2*USB3.0/1*HDMI/1*LAN/Lin out/Mic in
Brightness1000nitsUkuran462*296*80mm
Baterai177WH Waktu operasional 4-5h
Berat8kgSuhu operasional-10~60 C
Control Output18 Channels, 2*S-BUS Output/USB-HID/Customized agreement
Tipe saluran2* Joystick/1* Hall Rocker/8* Thrid Gear Levers/2* Knobs/2* Second Gear Levers
Frekuensi tautan data140*70*27mm
Jarak transmisi 6*RS232/2*USB/1*RJ45
Air Interface12V 3A

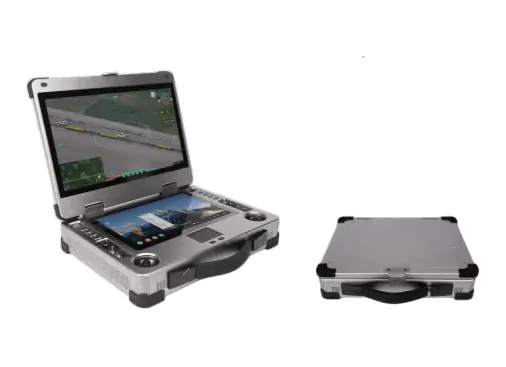

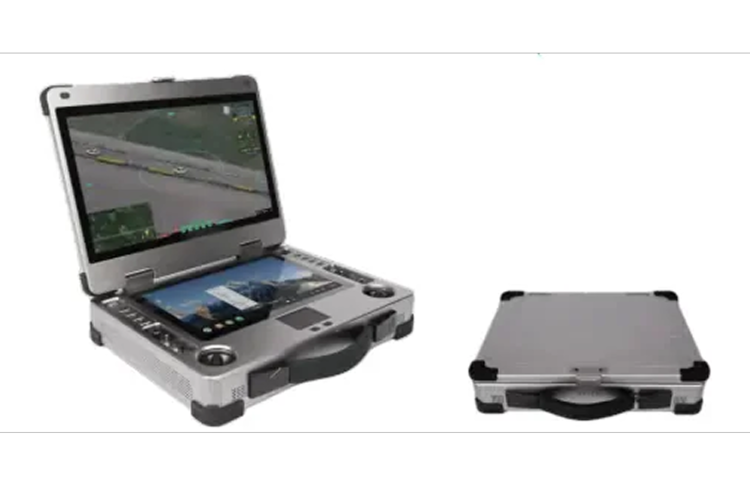

Light gray dual screen ground station shows car and streets in the screen

Ground Station Layar Ganda

Fitur Produk

  • 20 Channel/S-BUS Out Ganda
  • Opsional Tautan Data yang Berbeda
  • 1000 nits Sunlight Visible Screen

Detail Produk

SistemWindows 10/Linux
CPUIntel i7-11 Processor Penyimpanan SSD & RAM8G & 256GB (Dapat disesuaikan)
Wifi2.4G/5.8G wifi, Bluetooth 4.0Layar15,6 inci (1920*1080) +
12,1 inci (1280*800)
Layar sentuh10 Spot TouchExternal Interface2*USB3.0/1*HDMI/1*LAN/Lin out/Mic in
Brightness1000nitsUkuran397*330*80mm
Baterai266WHWaktu operasional4-5jam
Berat8kg Suhu operasional-10°C~60°C
Control Output20 Channels, 2*S-BUS Output/USB-HID/Customized agreement
Tipe saluran3* Joystick/6* Thrid Gear Levers/2* Knobs/8* Buttons
Cadangan ruang175*60*41mm
Reserved Interface6*RS232/2*USB/1*RJ45
Suku daya cadang12V 3A

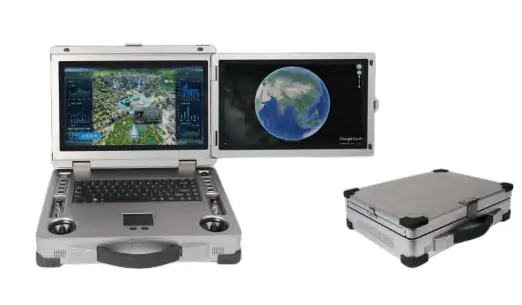

Light grey dual screen ground station with earth globe and maps inside

Ground Station Layar Ganda

Fitur Produk

  • Paduan Aluminium/Perlindungan Tinggi
  • Layar 15,6 Inci/1000 nits, Tahan Sinar Matahari
  • Mendukung Kartu Grafis Nvidia

Detail Produk

SistemWindows 10/LinuxCPUIntel i7-11 Processor
GPUIntel Iris XeSSD Storage & RAM16 & 512GB
Wifi2.4G/5.6G wifi, Bluetooth 4.0Screen2*15,6 inci, Resolusi 1920*1080
Layar sentuh10 Spot Touch External Interface2*USB3.0/1*HDMI/1*LAN/Lin out/Mic in
Brightness1000nitsUkuran416*330*100mm
Baterai266WHWaktu operasional4-6jam
Berat10kg Suhu operasional-10°C~60°C
Control Output20 Channels, 2*S-BUS Output/USB-HID/Customized agreement
Tipe saluran3* Joystick/6* Toggle Switches/2* Knobs/8* Buttons
Frekuensi Tautan Data175*80*41mm
Jarak Transmisi6*RS232/2*USB/1*RJ45
Air Interface12V 3A

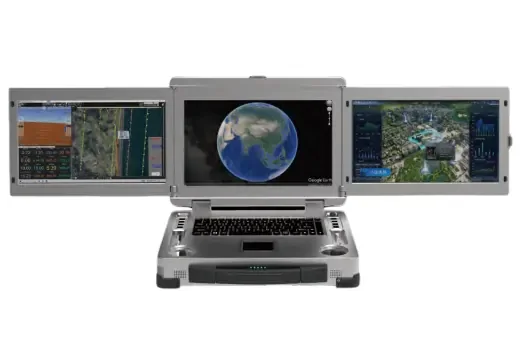

Three screen ground station with earth maps and globe image inside

Ground Station Tiga Layar
Fitur Produk

  • 20 Channel/S-BUS Out Ganda

  • 3*15,6 inci/1000 nits Sunlight Visible Screen

  • Mendukung OEM/OEM

Detail Produk

SistemWindows 10/Linux
CPUIntel i7-11 ProcessorPenyimpanan SSD & RAM16G & 512GB (Customizable)
Wifi2.4G/5.8G wifi, Bluetooth 4.0LayarLayar 3*15,6 inci,
Resolusi 1920*1080
Tampilan dayaComputer System Display/
LED Battery Level		External Interface2*USB3.0/1*DP/1*LAN/Lin out/Mic in
Brightness1000nitsUkuran416*330*118mm
Baterai266WHWaktu operasional3-4jam
Berat11kgSuhu operasional-20°C~60°C
Control output20 Channels, 2*S-BUS Output/USB-HID/Customized agreement
Tipe saluran3* Joystick/6* Toggle Switches/2* Knobs/8* Buttons
Cadangan ruang 175*80*41mm
Reserved Interface 6*RS232/2*USB/1*RJ45
Suku data cadang 12V 3A

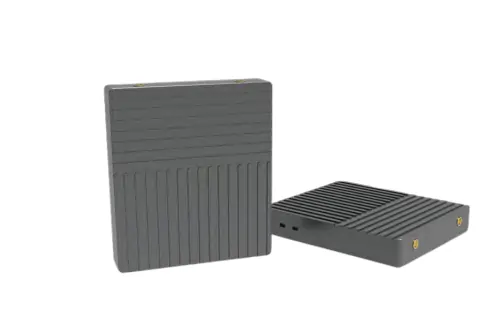

Dark gray data link product

Data Link

Fitur Produk

  • Mendukung point-to-point dan relay
  • Komunikasi latensi ultra rendah
  • Solusi Daya Rendah SOC

Detail Produk

Rentang frekuensi5.8Ghz Frequency Band:5.15Ghz~5.85G
Kecepatan transferAdaptive,≤100MbpsDaya transmisi maksimum30dBm(2T2R)
Jarak komunikasi10-15KM(Intervisibility)Sensitivitas-99dBm
Topologi JaringanPoint to point/Point-to-Multipoint/Relay/MESH
External Interface2*SMA, 1*SBUS, 1*TTL, 1*RJ45
Antenna GainAir:5dBi
Ground:Directional 14 dBi, Omnidirectional 5 dBi
Mode modulasiLR-WIFIRasio gelombang Standing Antenna  ≤5W
Suhu operasional-40~70°CSky End Size72*64*12mm
Berat53gSuku daya cadangDC9-72V

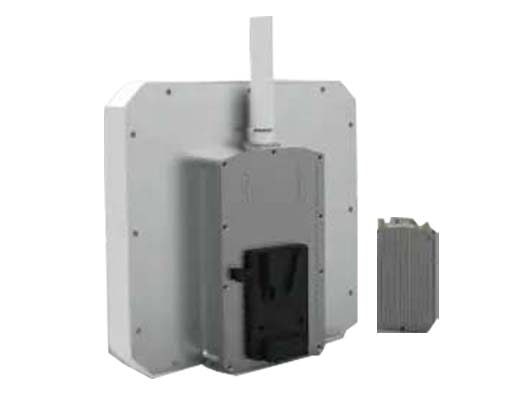

Light grey data link product

Data Link
Fitur Produk

  • 20 Channel/S-BUS Out Ganda
  • Tautan Data Berbeda Opsional
  • 1000 nits Sunlight Visible Screen

Detail Produk

Rentang Frekuensi1.4Ghz Pita Frekuensi: 1300mHz~1500G
Bandwidth saluran1.25MHz/2.5/10MHz/20MHzDaya keluaranM30:1W*2/M50:2W*2(2T2R)
Jarak komunikasi10-15km(Intervisibility)Sensitivitas≤ -103dBm@5MHz BW
External InterfaceAir:2*MMCX/1*SBUS/1*TTL/1*RJ45
Ground: 1*N-KF/1*TTL/1*S-BUS/1*RJ45
Jenis AntenaAir: Glue Stick Antenna 14cm
Ground:Flat Directional Antenna 25cm x 25cm
Antenna GainAir:2dBi
Ground:Directional 12 dBi, Omnidirectional 6 dBi
Mode ModulasiTD-COFDMRasio Gelombang
Antenna Standing		 M30≤ 8.5W    M50≤ 20W
Suhu operasional-40°C~70°CSky End Size117*62*19mm
Berat149g DC9-32V
