Mechanical Engine

Our Mechanical Engine solutions are designed to deliver reliable power and efficient performance for industrial UAV operations. Engineered with durability and operational stability in mind, these systems support demanding missions with consistent output and dependable functionality.

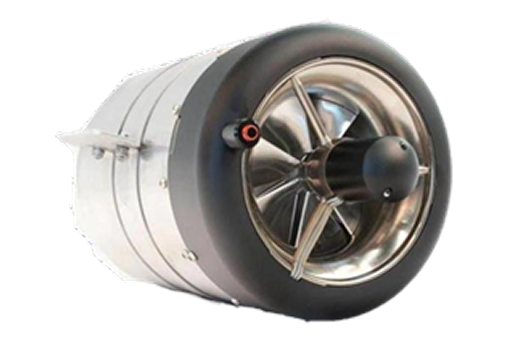

U25-P

The U25-P Mechanical Engine is engineered to deliver high-performance propulsion and reliable power output for advanced UAV operations, it provides stable performance and responsive operation across demanding environments.

Idle Speed31000 RPM
Idle Torque0,85 kg
Idle Fuel Consumption100 ml/min
Max Speed117000 RPM
Max Thrust25 kg
Fuel Consumption at Max Speed640 g/min
Exhaust Gas Temperature550°C - 750°C
Pressure Ratio3.7
Maximum Airflow Rate0,47 kg/s
SFC Max Speed1.6 kg/daN.h
Machine Weight2.05 kg
Diameter117 mm
Length297 mm
Max Initial Height4600 m
Max Operating Height10000 m
Fuel MixtureKerosene or Aviation Diesel
Supply VoltageBattery 3SLi-Po/12V
Operational Flow<3A

U55-P

The U55-P Mechanical Engine is engineered to deliver high-thrust propulsion and reliable power output for demanding UAV operations, it provides dependable support for heavy-duty and mission-critical aerial applications.

Idle Speed26000 RPM
Idle Torque3.0 kg
Idle Fuel Consumption230 ml/min
Max Speed83000 RPM
Max Thrust56 kg
Fuel Consumption at Max Speed1300 g/min
Exhaust Gas Temperature550°C-850°C
Pressure Ratio4
SFC Max Speed1.4 kg/daN.h
Machine Weight4.9 kg
Diameter175 mm
Length456 mm
Max Initial Height4000 m
Max Operating Height10000 m
Fuel MixtureKerosene or Aviation Diesel
Power Supply Voltage12V
Initial Flow<20A
Operational Flow<5A

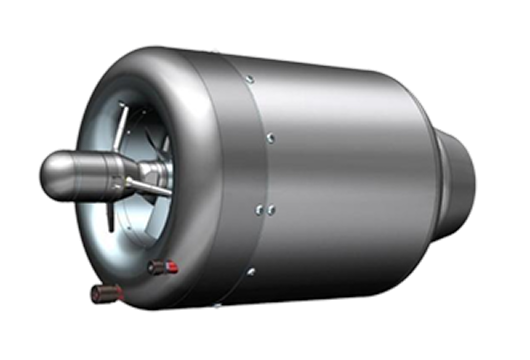

U42-P

The U42-P Mechanical Engine is engineered to deliver reliable propulsion performance and efficient power output for advanced UAV operations, it provides dependable support for long-endurance and mission-critical aerial applications.

Idle Speed35000 RPM
Idle Torque3.5 kg
Idle Fuel Consumption240 ml/min
Max Speed98000 RPM
Max Thrust42 kg
Fuel Consumption at Max Speed1300 g/min
Exhaust Gas Temperature550°C-850°C
Pressure Ratio4
SFC Max Speed1.65 kg/daN.h
Machine Weight3.95 kg
Diameter148 mm
Length390 mm
Max Initial Height4000 m
Max Operating Height10000 m
Fuel MixtureKerosene or Aviation Diesel
Power Supply Voltage12V
Initial Flow<20A
Operational Flow<5A

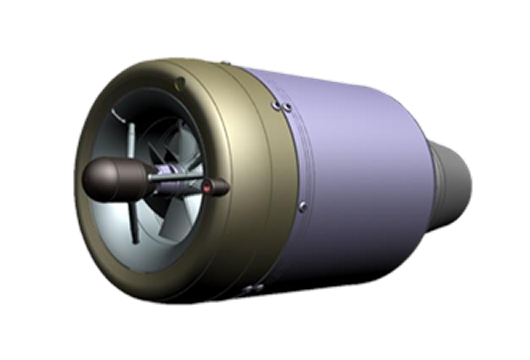

U85-P

The U85-P Mechanical Engine is engineered to deliver high-thrust propulsion and dependable power output for heavy-duty UAV operations, it provides stable performance and efficient operation across demanding mission environments.

Idle Speed20000 RPM
Idle Torque4.0 kg
Idle Fuel Consumption450 ml/min
Max Speed62000 RPM
Max Thrust86 kg
Fuel Consumption at Max Speed1960 g/min
Exhaust Gas Temperature550°C-850°C
Pressure Ratio4
Maximum Airflow Rate1.35 kg/s
SFC Max Speed1.35 kg/daN.h
Machine Weight9.3 kg
Diameter205 mm
Length536 mm
Max Initial Height4000 m
Max Operating Height10000 m
Fuel MixtureKerosene or Aviation Diesel
Power Supply Voltage12V
Initial Flow<20A
Operational Flow<5A

T120

The T120 Mechanical Engine is engineered to deliver reliable propulsion performance and efficient power output for professional UAV operations, it provides dependable support for long-endurance and mission-critical aerial applications.

Power11.22hp/8.25kW
Static Thrust26.5kg/Altitude 100m  | 23.5kg/Altitude 1800m
Max take-off weight 60kg
Recommended Propeller 26*10;26*12;27*10;28*10
Diameter X Stroke45mm X 35mm
Displacemet120cc
Weight3.05kg
Crankshaft3 Ball Bearings
Speed Range1300 – 7500 RPM
Lubricantion Ratio25:1 – 30:1
Ignition Voltage6.0 – 8.4VDC
Fuel4.5L/h
Dimension285*220*222mm

T170

The T170 Mechanical Engine is engineered to deliver powerful propulsion performance and reliable power output for advanced UAV operations, it provides stable performance and responsive operation across demanding flight environments.

Power18.1hp/13.3kW
Static Thrust35kg/Altitude 100m | 31.5kg/Altitude 1800m
Max take-off weight80kg
Recommended Propeller30*12 ; 32*10
Diameter X Stroke51mm X 41mm
Displacemet170cc
Weight3.93kg
Crankshaft3 Bearings crankshaft
Speed Range1100 – 7500 RPM
Lubricantion Ratio50:1
Ignition Voltage6 – 8.4V DC
Fuel6L/h
Dimension340*232*190mm

T350

The T350 Mechanical Engine is engineered to deliver high-power propulsion and reliable performance for heavy-duty UAV operations, provides stable performance and efficient operation across demanding flight environments.

Power29.37hp/21.6kW
Static Thrust47.5kg/Altitude 100m | 45.5kg/Altitude 1800m
Max take-off weight150kg
Recommended PropellerD750*H760 ; 30*20
Diameter X Stroke65mm X 50mm
Displacemet350cc
Weight11.46kg
CrankshaftHigh Strength Alloy Steel
Speed Range2200 – 5600 RPM
Lubricantion Ratio20:1
Ignition DC CDI Electronic Ignition
CarburetorAll-round carburetor with choke
Generator36V three-phase AC (Optional 500w/1000w)
Fuel10L/h
OptionStarter 24V/optional electric start
Dimension360*310*330mm

T500

The T500 Mechanical Engine is engineered to deliver high-power propulsion and dependable performance for heavy-duty UAV operations, provides dependable support for long-endurance and mission-critical aerial applications.

Power44.88hp/33kW
Static Thrust60g/Altitude 100m | 55.5kg/Altitude 1800m
Max take-off weight220kg
Recommended Propeller30*26
Diameter X Stroke75mm X 56mm
Displacemet500cc
Weight17kg
CrankshaftHigh Strength Alloy Steel
Speed Range2500 – 6000 RPM
Lubricantion Ratio20:1
Ignition Solid-state magneto igniton
CarburetorAll-round carburetor with choke
GeneratorStandard 350w, optional 500w 1000w generator
Fuel13.5L/h
OptionStarter 24V
Dimension440*290*310mm

T550

The T550 Mechanical Engine is engineered to deliver high-power propulsion and dependable performance for heavy-duty UAV operations, provides stable performance and efficient operation across demanding flight environments.

Power49.62hp/37kW
Static Thrust70g/Altitude 100m | 61.8kg/Altitude 1800m
Max take-off weight220kg
Recommended Propeller32*20 ; 30*23 ; 30*25
Diameter X Stroke66mm X 40mm
Displacemet550cc
Weight18.3kg
CrankshaftForging, seven-piece set
Speed Range1300 – 7500 RPM
Lubricantion Ratio50:1
Ignition Solid-state magneto igniton
Firing order 2 Cylinders are ignited synchronously , 180° apart
Carburetor2 membrane type full range carburetors, without choke
GeneratorNone
PistonOval grinding, aluminium alloy casting
CylinderAluminium alloy casting, inner wall nickell silicon
hardening coating
Engine StrokeTwo-stroke
Layout formHorizontally opposed, 4 cylinders
StarterOptional
Fuel 14L/h
Option Exhaust pipe Starter Generator
Dimension 430*340*400mm

T630

The T630 Mechanical Engine is engineered to deliver high-power propulsion and reliable performance for heavy-duty UAV operations, provides dependable support for long-endurance and mission-critical aerial applications.

Power55hp/41kW
Speed Range2000 – 75000 RPM
Max take-off weight252kg
Recommended Propeller40*20 ; 45*20
Spark Plug Type BM6A
Diameter X Stroke 60mm X 50mm
Compression ratio 10.5 : 1
Displacemet630cc
Lubrication ratio 30 : 1
Weight18.3kg
Ignition Voltage6V – 14.4V
Starting Power Supply Voltage12V – 24V
Fuel15L/h
OptionElectric starter, generator, EFI
Dimension420*410*370mm

T730

The T730 Mechanical Engine is engineered to deliver high-power propulsion and dependable performance for heavy-duty UAV operations, provides dependable support for long-endurance and mission-critical aerial applications.

Power63.5hp/47.3kW
Speed Range2000 – 75000 RPM
Max take-off weight270kg
Recommended Propeller40*20 ; 45*20
Spark Plug TypeBM6A
Diameter X Stroke66mm X 54mm
Compression ratio10.5 : 1
Displacemet730cc
Lubrication ratio30 : 1
Weight18.3kg
Ignition Voltage6V – 14.4V
Starting Power Supply Voltage12V – 24V
Fuel17L/h
OptionElectric starter, generator, EFI
Dimension420*410*370mm
